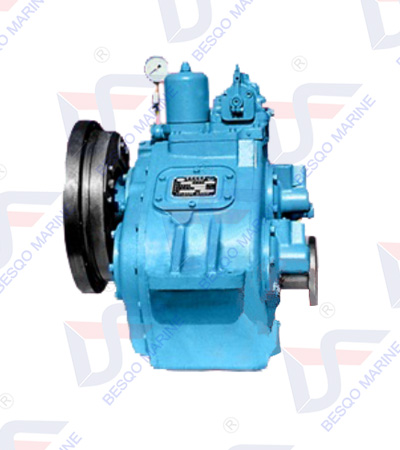

Detailed Parameters of 40A Marine Gearbox
The 40A marine gearbox has the functions of slowing down, pouring, shun clutch and bearing propeller thrust. The gearbox is a vertical heterogeneous first-stage transmission structure, with small size, light weight and other characteristics.
40A Marine gearboxes are suitable for small fishing vessels, transport vessels, traffic boats, passenger ships and other vessels.
|
Input speed |
750-2000r/min |
||
|
Deceleration ratio |
2.07、2.96 |
Delivery capabilities |
0.030kw/r/min |
|
3.44 |
0.025kw/r/min |
||
|
Manipulation type |
Push and pull soft shaft, electronic control |
||
|
Rated thrust |
8.8KN |
||
|
Center Distance |
142mm |
||
|
Length × width × height |
490×670×620mm |
||
|
Net |
225kg |
||
|
Connecting Flywheel |
4110C、SAE14、11.5 |
||
|
Connecting Housings |
4110C、SAE1、2、3 |
||
Besqo Marine offers a wide range of Host Device. For more information, leave message or send an email to sales@besqo.com.
