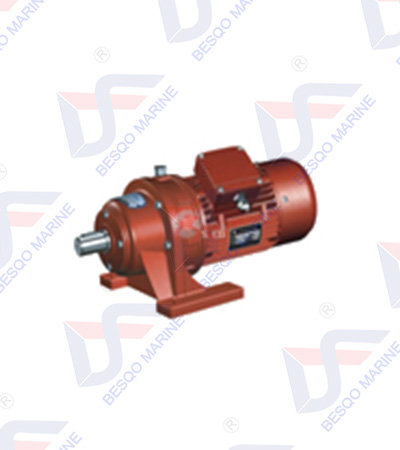

What is cycloidal pin gear reducer?
Cycloidal pin gear reducer is a novel transmission device which applies planetary transmission principle and adopts cycloidal pin tooth meshing.
In the input shaft is equipped with a dislocation of 180° double eccentric sleeve, in the eccentric sleeve is equipped with two roller bearings called rotating arms, forming the H mechanism, the center hole of the two cycloidal wheel is the raceway of the rotating arm bearing on the eccentric sleeve, and by the cycloidal wheel and a group of circular arrangement of needle teeth on the needle gear meshed to form the internal meshing gear reducer, (in order to reduce friction, In a reducer with a small speed ratio, the needle teeth are provided with a needle tooth sleeve).
When the input shaft rotates with the eccentric sleeve, due to the characteristics of the tooth profile curve on the cycloidal wheel and the limitation of the needle teeth on the needle gear, the motion of the cycloidal wheel becomes a plane motion with both revolution and rotation. When the input shaft is rotating once, the eccentric sleeve also rotates once, and the cycloidal wheel turns a tooth in the opposite direction to decelerate, and then the W output mechanism is used. The low speed rotation motion of the cycloidal wheel is transmitted to the output shaft through the pin shaft, so as to obtain a lower output speed.
Cycloidal pin gear reducer is a novel transmission device which applies planetary transmission principle and adopts cycloidal pin tooth meshing.
In the input shaft is equipped with a dislocation of 180° double eccentric sleeve, in the eccentric sleeve is equipped with two roller bearings called rotating arms, forming the H mechanism, the center hole of the two cycloidal wheel is the raceway of the rotating arm bearing on the eccentric sleeve, and by the cycloidal wheel and a group of circular arrangement of needle teeth on the needle gear meshed to form the internal meshing gear reducer, (in order to reduce friction, In a reducer with a small speed ratio, the needle teeth are provided with a needle tooth sleeve).
When the input shaft rotates with the eccentric sleeve, due to the characteristics of the tooth profile curve on the cycloidal wheel and the limitation of the needle teeth on the needle gear, the motion of the cycloidal wheel becomes a plane motion with both revolution and rotation. When the input shaft is rotating once, the eccentric sleeve also rotates once, and the cycloidal wheel turns a tooth in the opposite direction to decelerate, and then the W output mechanism is used. The low speed rotation motion of the cycloidal wheel is transmitted to the output shaft through the pin shaft, so as to obtain a lower output speed.
